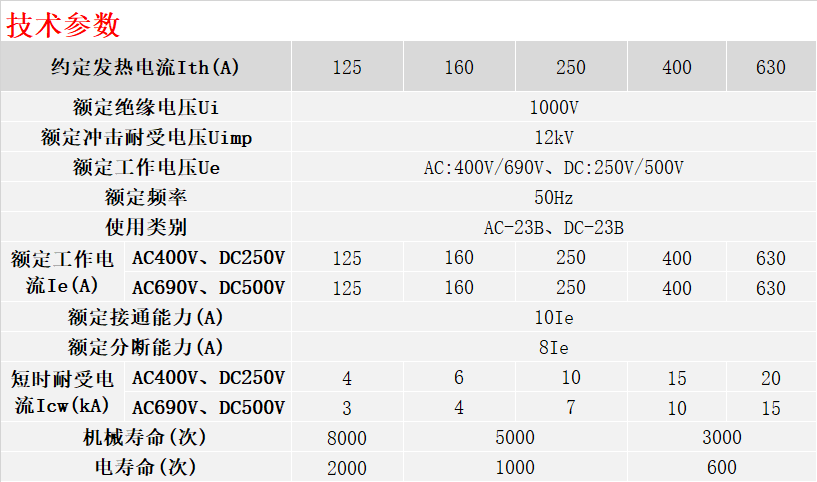

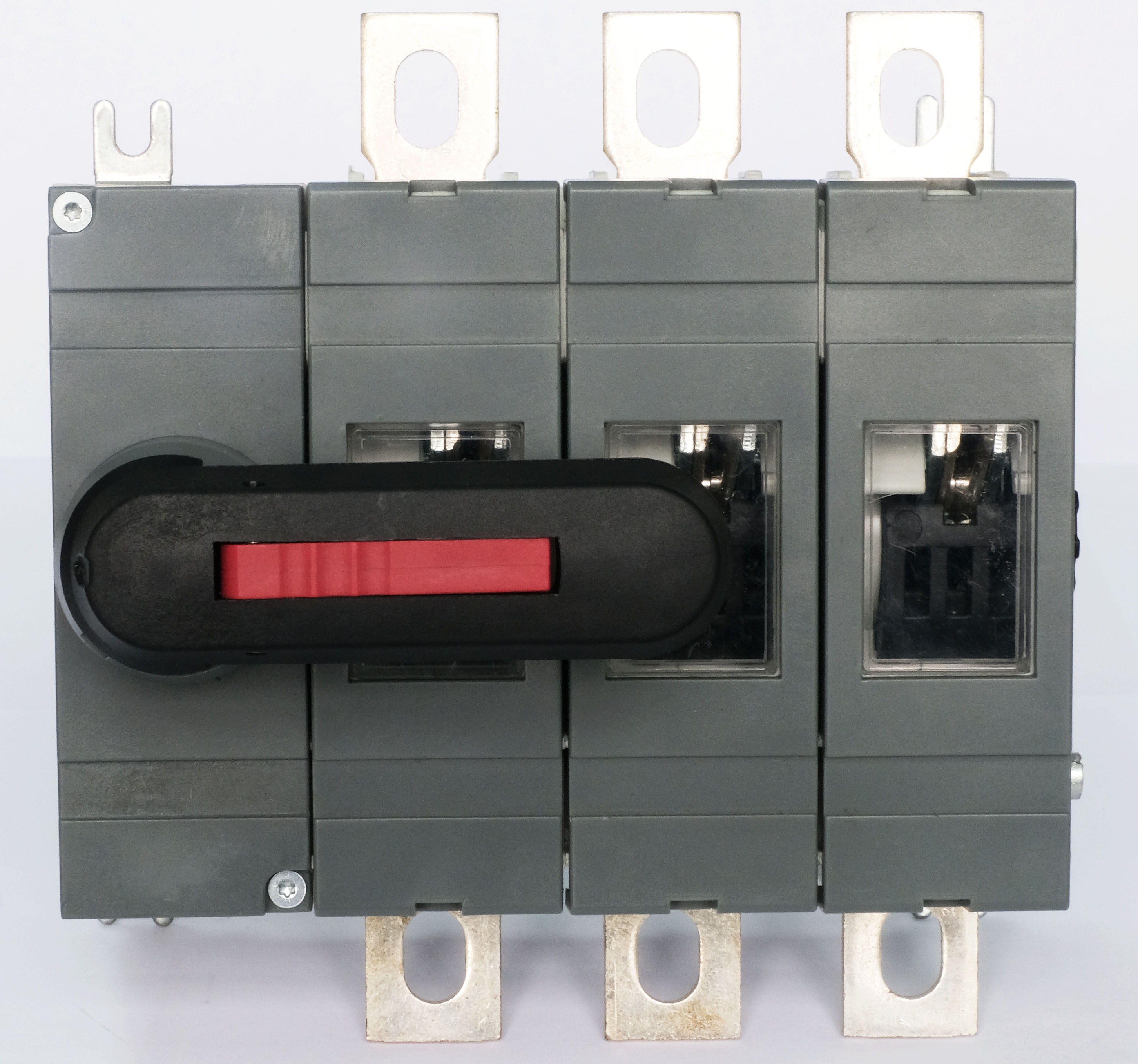

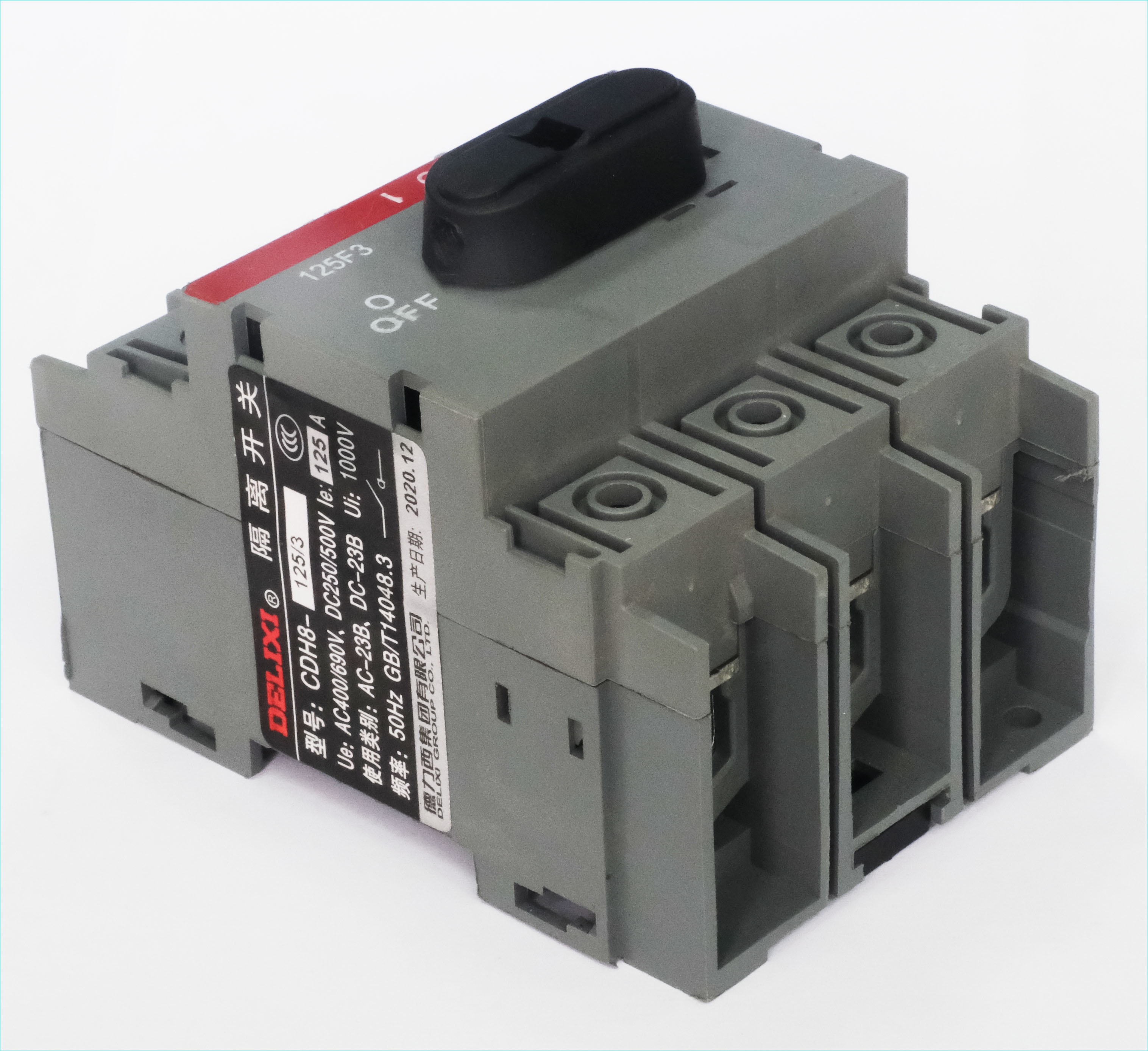

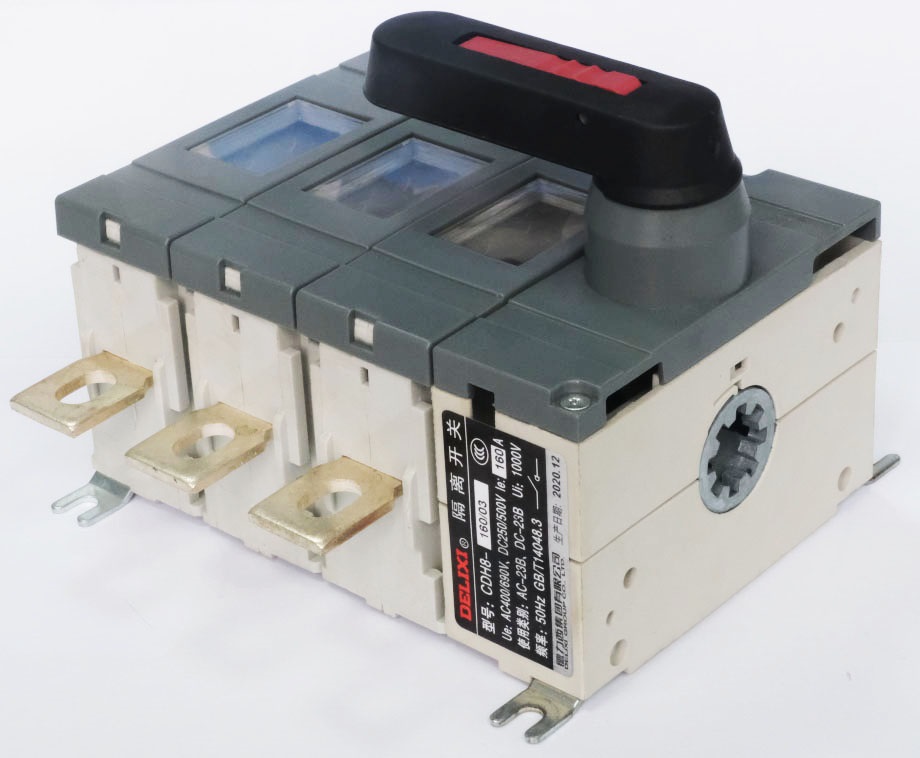

CDH8 series DC disconnector with a rated insulation voltage 1000V, a rated frequency 50Hz, a rated working voltage up to DC250V/500V, AC400/690V, and rated working current up to 630A is mainly used in the power distribution circuit for power isolation and power conversion isolation. The switch can be operated manually, and the structure adopts single-pole module splicing mode, and the number of poles and the position of the operating mechanism can be freely combined to better meet customer needs. The moving contact structure is of the rotary type and equipped with a metal arc extinguishing grid to reliably extinguish the arc for safe operation.
