Home page >Products >Power Distribution Products >Power Distribution >Air Circuit Breaker (ACB) >CDW3 Air Circuit Breaker

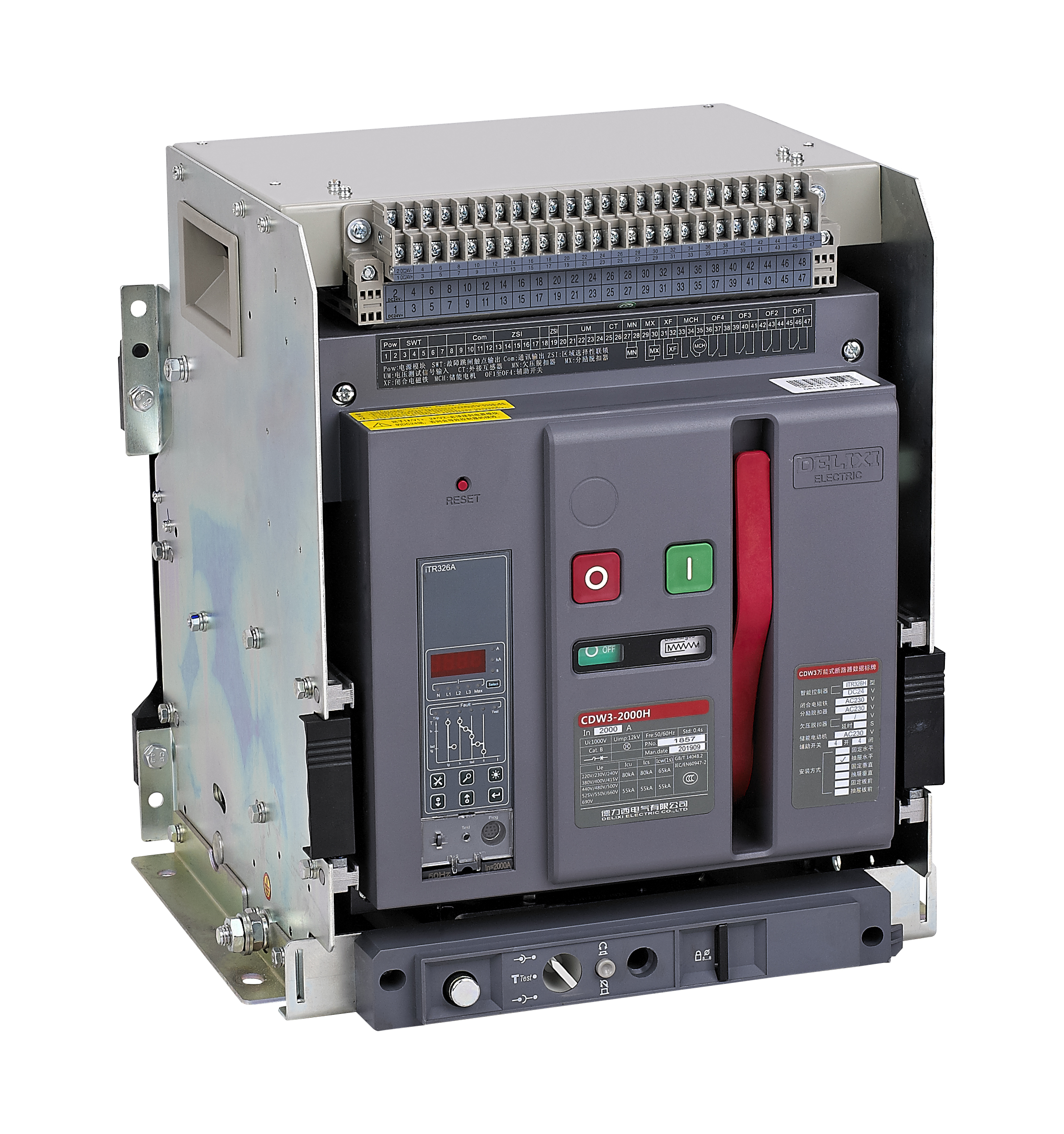

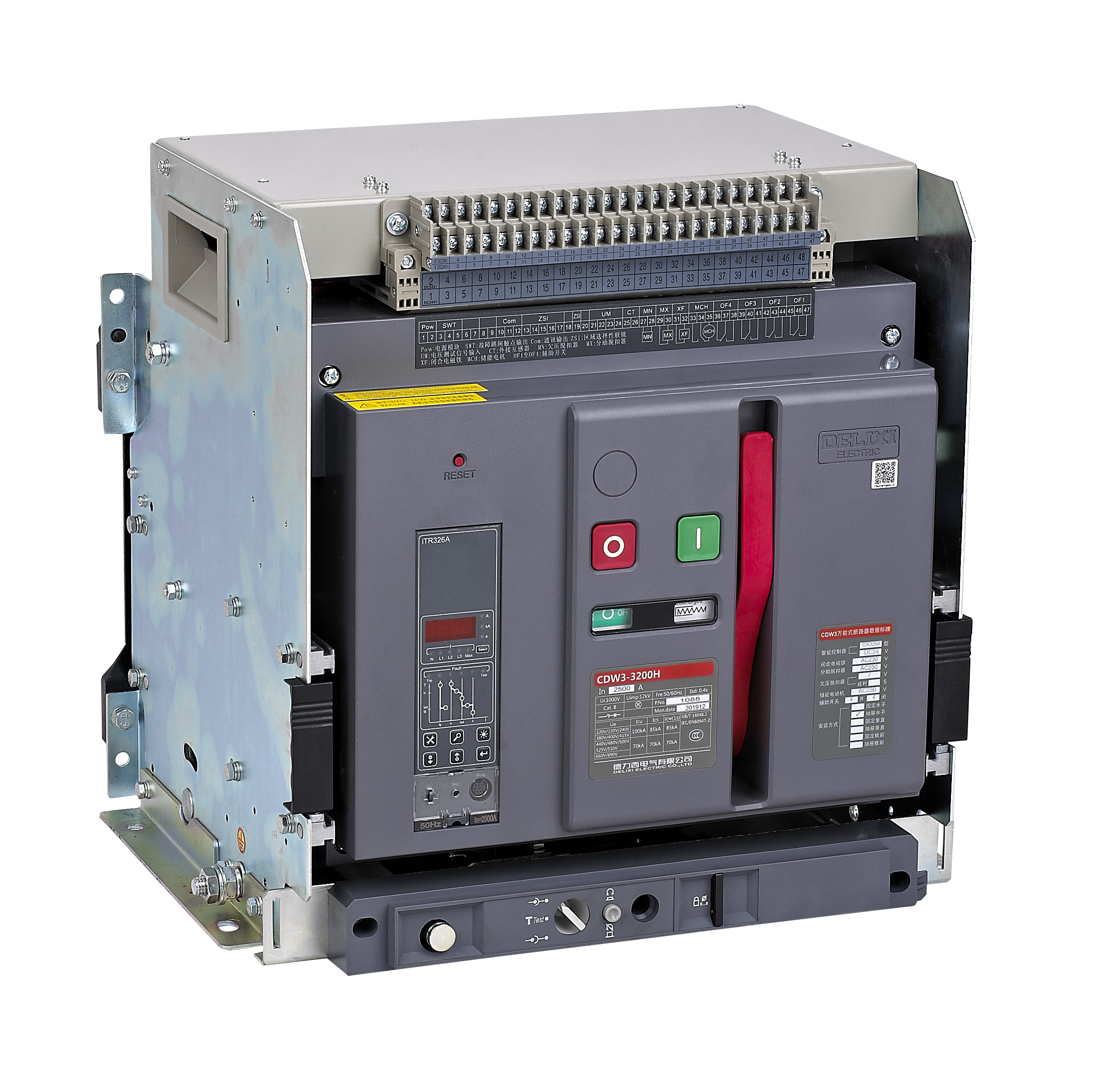

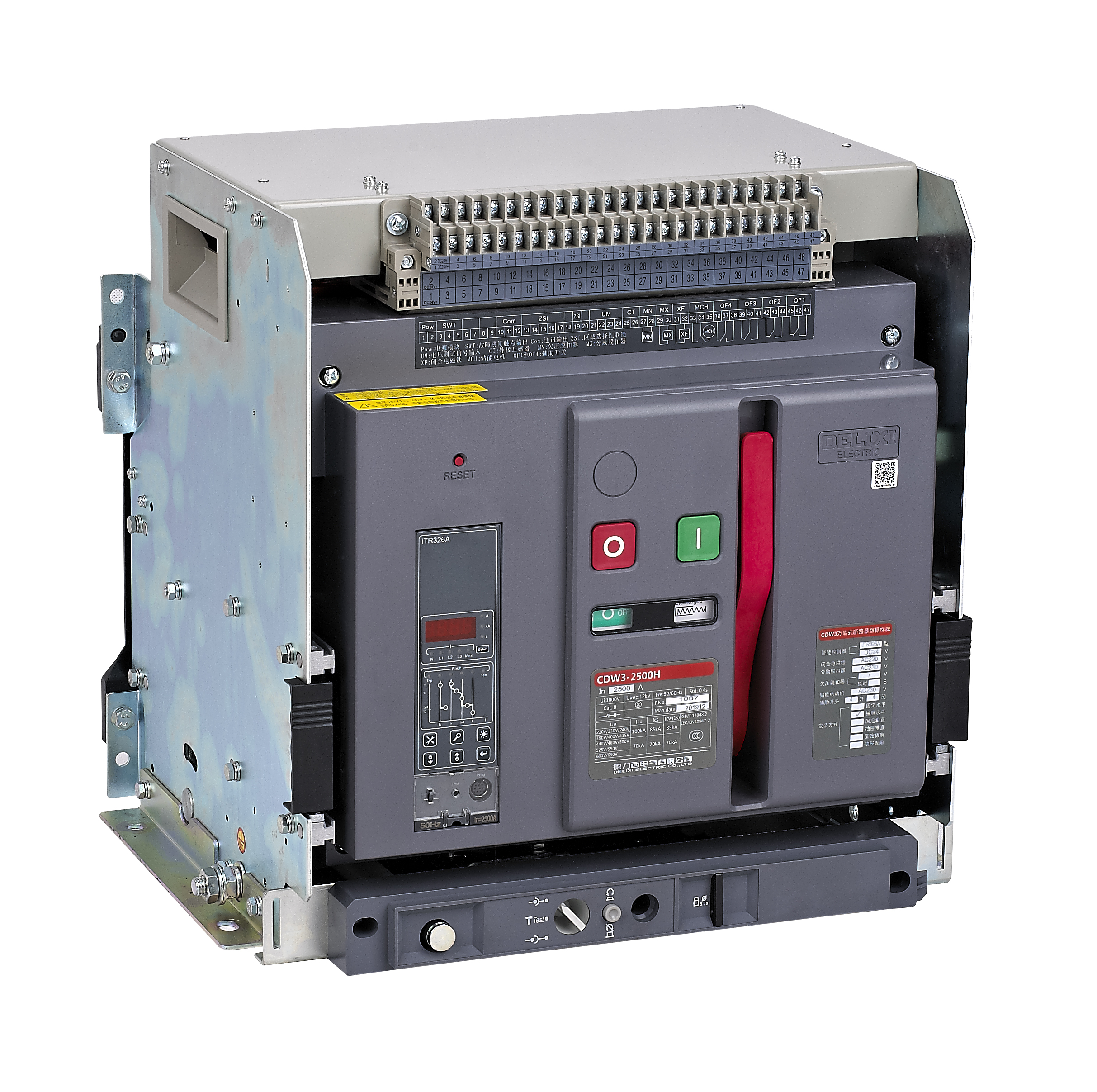

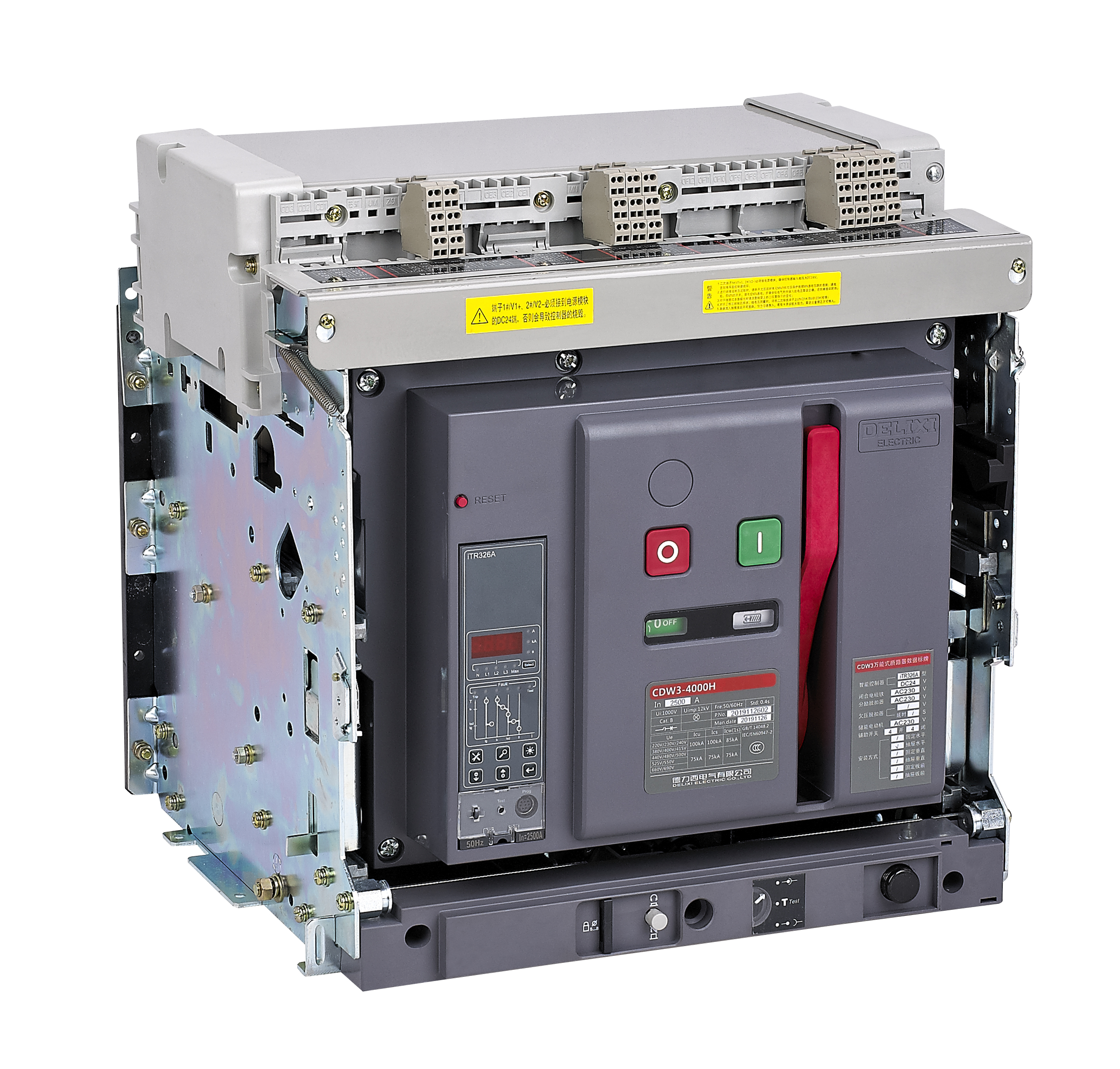

CDW3 series frame circuit breaker has a rated current ranging 400A to 6300A, a rated operating voltage of AC 415V / 690V, suitable for AC 50Hz/60Hz, -40°C~70°C extreme environmental conditions. It is mainly used in power distribution network for the distribution of electric energy and for the protection of the lines and power supply equipment to prevent any risks caused by the faults such as overload, undervoltage, short circuit, and single-phase grounding. The circuit breaker can be widely used in the power distribution systems in power stations, factories, mines and modern high-rise buildings, especially in intelligent buildings. Standard: GB14048.2 IEC/EN 60947-2
