LKSF Sine Wave Filter Reactor

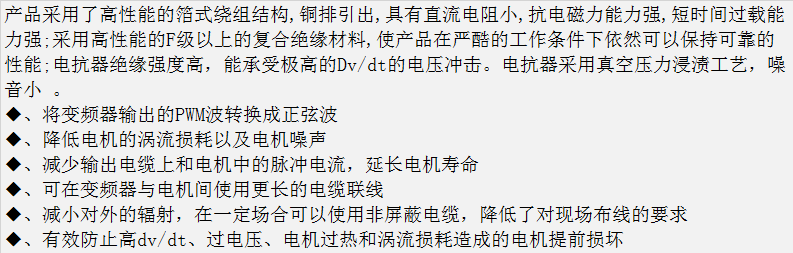

Driven by a PWM inverter, a sine wave filter can still provide a smooth sine wave at the low residual ripple voltage in the switching frequency range between 2-8kHz. In inverter drive applications, it can prevent damage to the winding insulation of the motor, reduce the resonance generated by the distributed capacitance and distributed inductance due to cable length, eliminate motor overvoltage caused by high dv/dt, eliminate the early damage to the motor caused by eddy current loss, improve the performance and life of the motor, and extend the output distance of the inverter.

INTRODUCTION
