Home page >Products >Power Distribution Products >Power Management >Reactor >ACl, OCL Series Input And Output Reactors

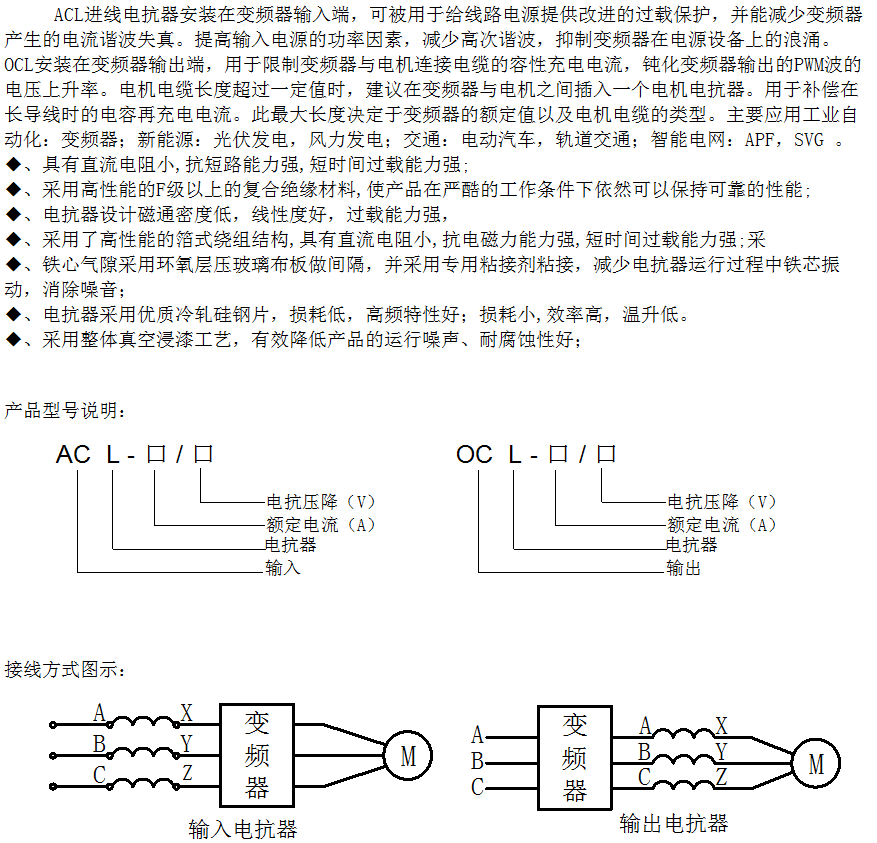

Input reactor (ACL): To suppress the network measurement harmonics of the incoming power supply, increases the short-circuit impedance of the main circuit of the incoming energy supply, limit the current surge caused by sudden grid voltage changes and operating overvoltage, smooth the voltage pulse contained in the power supply voltage, or smooth the voltage defects generated when the bridge rectifier circuit phase changing. It can effectively protect the inverter and improve the power factor, and can not only prevent interference from the power grid, but also reduce the pollution to the grid by the harmonic current generated by the rectifier unit. Output reactor (OCL): To balance the distributed capacitive load of the outlet cable, and increase the impedance of the main circuit of the outlet; when more than two inverters are running in parallel, it can also be used for phase changing ring current limit and load balancing; the output reactor can compensate for the influence of long-line distribution capacitance, and can suppress the output harmonic current, and improve the output high-frequency impedance.
